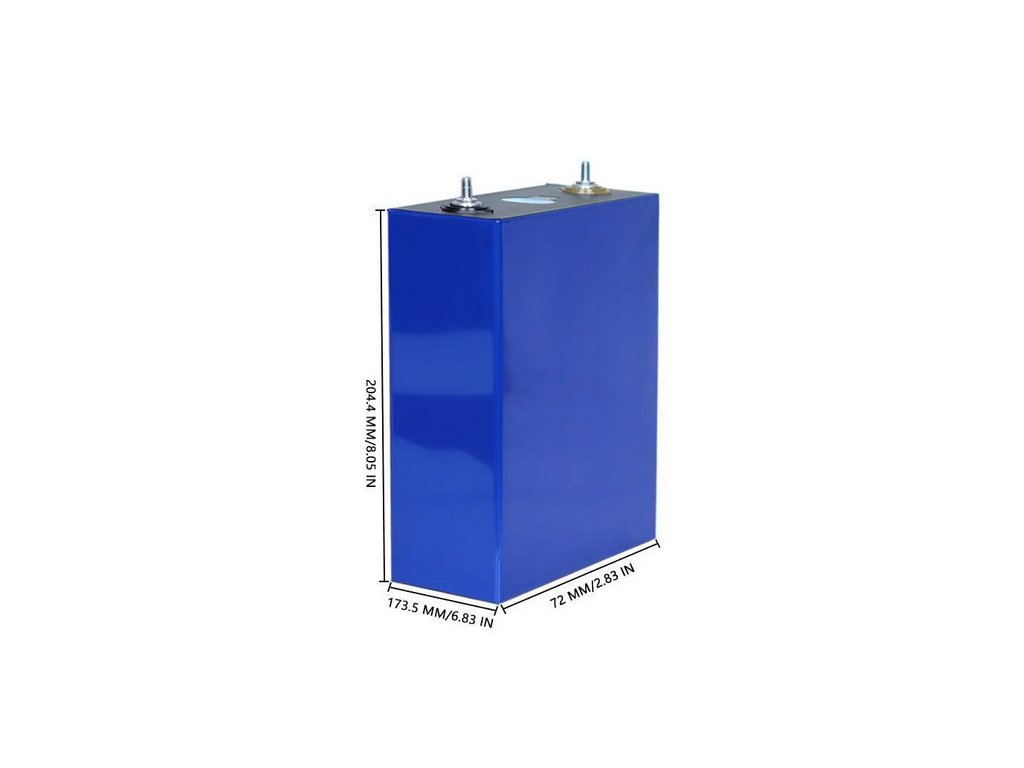

BSU battery cell LiFePo4 304Ah 3.2V
Universal battery cell for building battery storage.
| Category: | Energy storage systems |
|---|
- Nominal Capacity: 304 Ah
- Nominal Voltage: 3.2 V
- Energy: 973 Wh
- Operating Voltage Range: 2.5 V ~ 3.65 V
- Optimal Operating Voltage Range: 3-3.55V
- Maximum Charging Voltage: 3.65 V
- Standard Charging Current: 152 A / 0.5C
- Maximum Continuous Discharge Current: 304 A / 1C
- Maximum Discharge Current (60 seconds): 912 A / 3C
- Self-Discharge Rate: ≤ 3 %
- Internal Resistance: 0.16 mΩ ± 0.05 mΩ
- Cycle Count / Lifespan: 4000 @ 25 °C
- Operating Temperature / Charging: 2 °C ~ 65 °C
- Operating Temperature / Discharging: -35 °C ~ 65 °C
- Storage Temperature: -20°C ~ 45 °C (long-term 0°C ~ 35 °C)
- Thread: 2x M6
