EVSE DIN RS485 RJ12
The EVSE DIN RS485 RJ12 is a device for charging electric vehicles that is mounted in a DIN rail and controls the charging process. It is an improved version of the EVSE WB with RS485 and RJ12 interface.
| Category: | Equipment for electric vehicles |
|---|
- Charging control: Like EVSE DIN, this version controls the electric vehicle charging process, communicates with the vehicle, regulates charging current, and ensures safety.
- RS485 communication: The RS485 interface enables more advanced communication with other devices, such as IoTmeters for monitoring energy consumption.

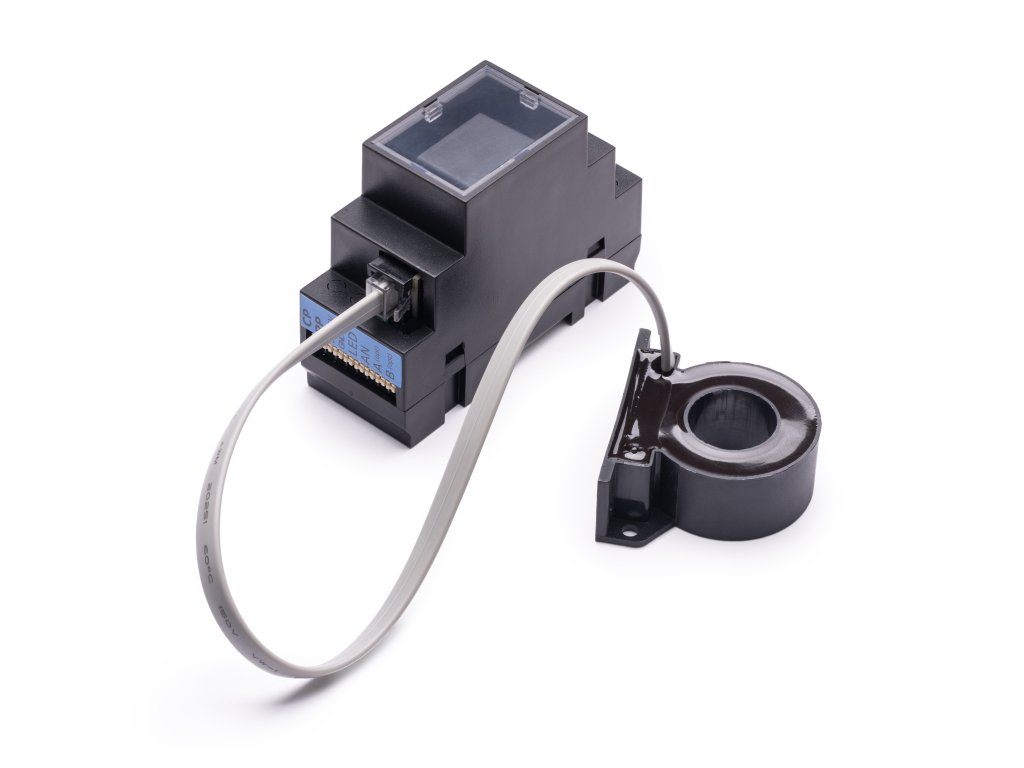

- RJ12 for residual current monitoring: The RJ12 socket is used to connect an RCM sensor (Residual Current Monitor), which monitors residual current and can disconnect charging in case of danger (e.g., current leakage).
Advantages:
- Improved EVSE WB version: Offers more advanced features than the previous version.
- Communication with IoTmeters: Allows monitoring of energy consumption during charging.
- Increased safety: Thanks to the RCM sensor and RJ12 socket, charging is safer.
Important:
- Does not work independently: An RCM sensor must be purchased for residual current monitoring.
- DIN rail mounting: Allows easy installation in a distribution board.
- Professional installation required: Installation should only be carried out by a qualified electrician.
