EVSE-SM - Smartmodul RFID
Smart Wi-Fi expansion module with wattmeter to extend the functionality of the charging station. Remote control and monitoring via SmartModule mobile app. Communication with selected solar inverters for dynamic charging current balancing and NZU compliance
| Category: | Products |
|---|
- Wattmeter with datalogger
- Charging history for individual users
- Communication with selected solar inverters
- IoTMeter mobile application - FREE to download from Google Play and App Store.
- Wi-Fi interface - access point (AP) option or connection to home Wi-Fi LAN

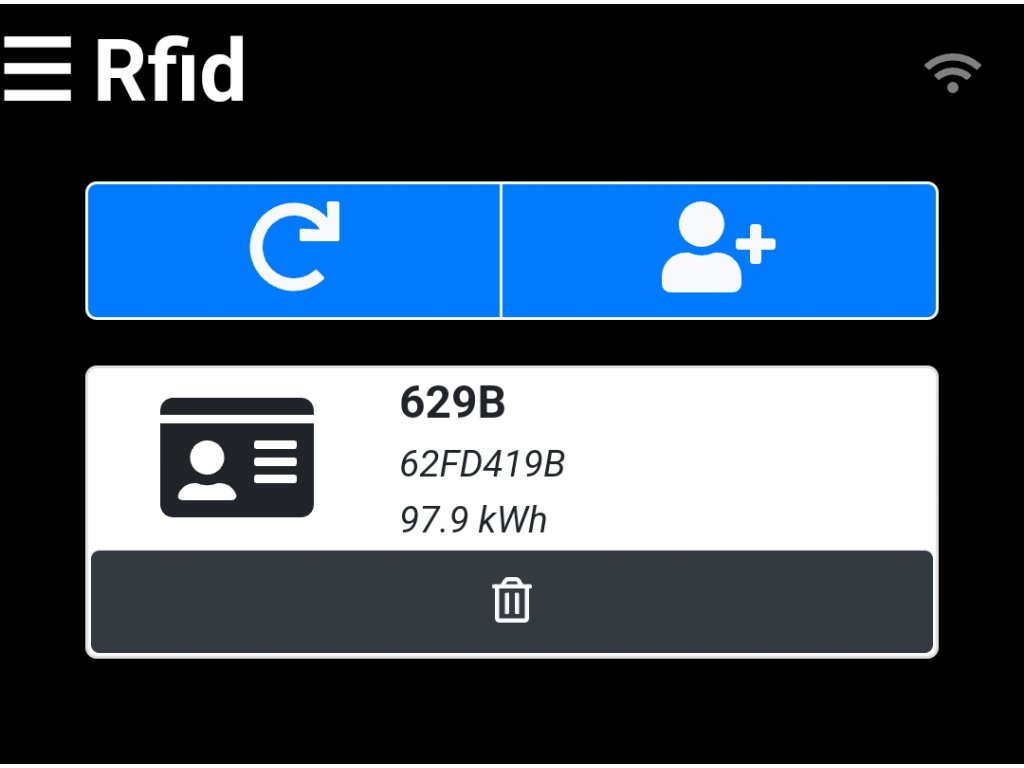

- In cooperation with an RFID reader, it enables user management and energy allocation to individual users
- Galvanically isolated RS485 MODBUS RTU interface
- MODBUS TCP - open communication protocol with API for implementing a custom control system (PC, Raspberry Pi, Nodered - see programming examples below)
- Compatibility with EVSE-DIN charging stations with RS485Measures RMS currents, RMS voltages, Active power, apparent power, power factors
Energy consumed from the grid / supplied to the grid - Hourly, daily, monthly energy graphs
- Power records for the last hour, peak value recording
- Communication with Goodwe, Solax, Victron, Solinteg inverters
Included in the package:

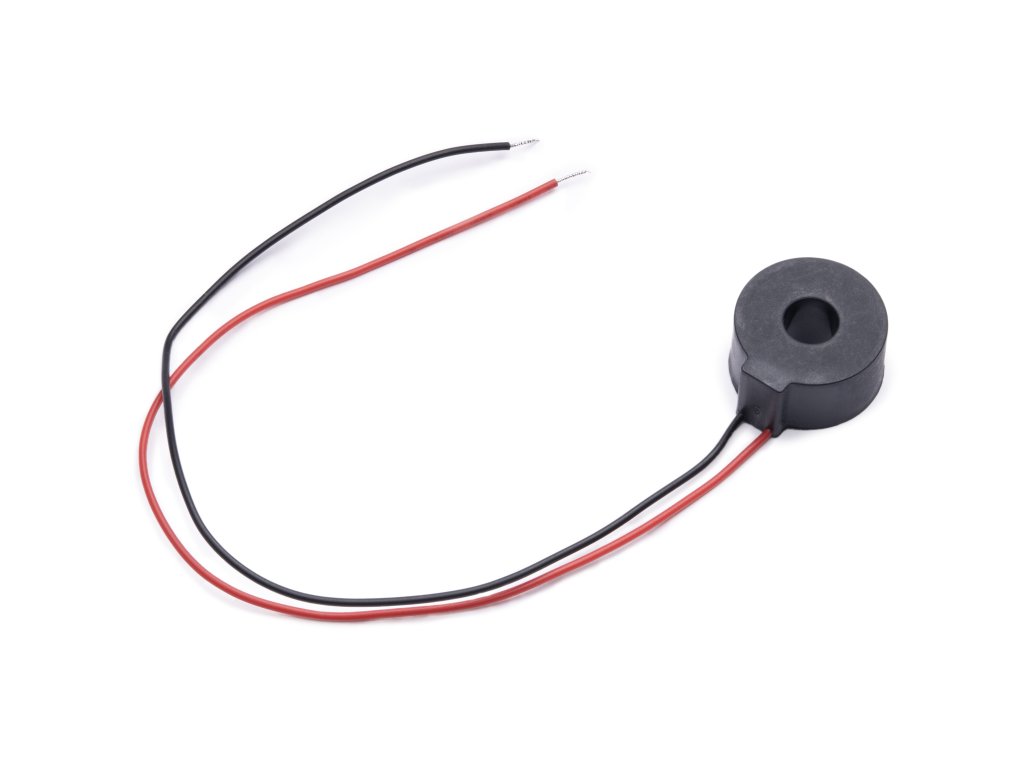

- includes 3 current clamps for conductors up to 6mm2 cross-section
- !! RFID module not included !! but can be added to the cart - RFID module
IoTmeter Application (Android / iOS)
- Management of IoTmeter and Smartmodule devices
- https://play.google.com/store/apps/details?id=com.evracing.IoTmEtter
- https://apps.apple.com/cz/app/iotmeter/id1560319286?l=cs
