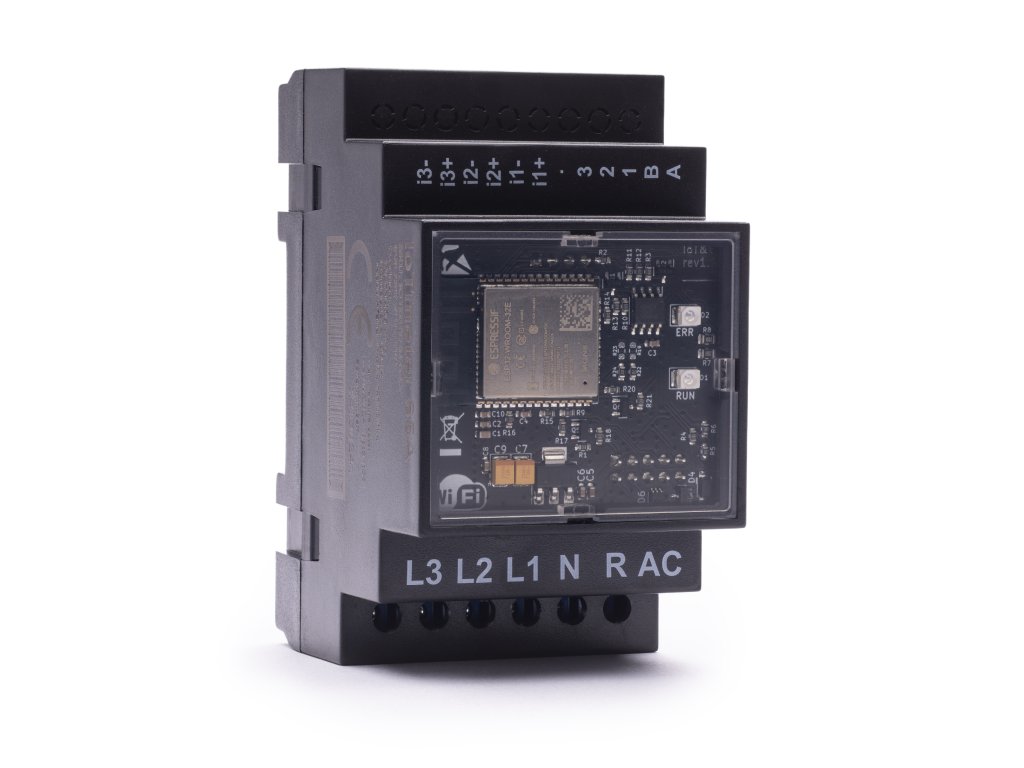

IOTMETER 125A

• Consumption measurement: IoTmeter 125A accurately measures electricity consumption, both total and for individual charging stations.
• Charging management: IoTmeter 125A allows dynamic management of the charging current of electric vehicles based on the available capacity of the electrical grid. This means that the charging power is automatically adjusted to prevent overloading the grid and tripping circuit breakers.
• Consumption optimization: IoTmeter 125A allows setting different charging modes, for example, considering low electricity tariffs (TOU) or with a preference for using energy from a photovoltaic power plant.
• Monitoring and control: IoTmeter 125A connects to the Wi-Fi network and allows monitoring energy consumption and controlling charging via a mobile application or web interface.

Advantages of IoTmeter 125A:

• Smart management: Enables efficient management of energy consumption and optimization of electric vehicle charging.
• Overload prevention: Prevents overloading the electrical grid and tripping circuit breakers.
• Cost savings: Allows the use of more favorable electricity tariffs and energy from own sources.
• Easy to use: Monitoring and control via a mobile application or web interface is simple and intuitive.
• Flexibility: Supports the management of up to 10 EVSE charging stations.

Technical parameters:

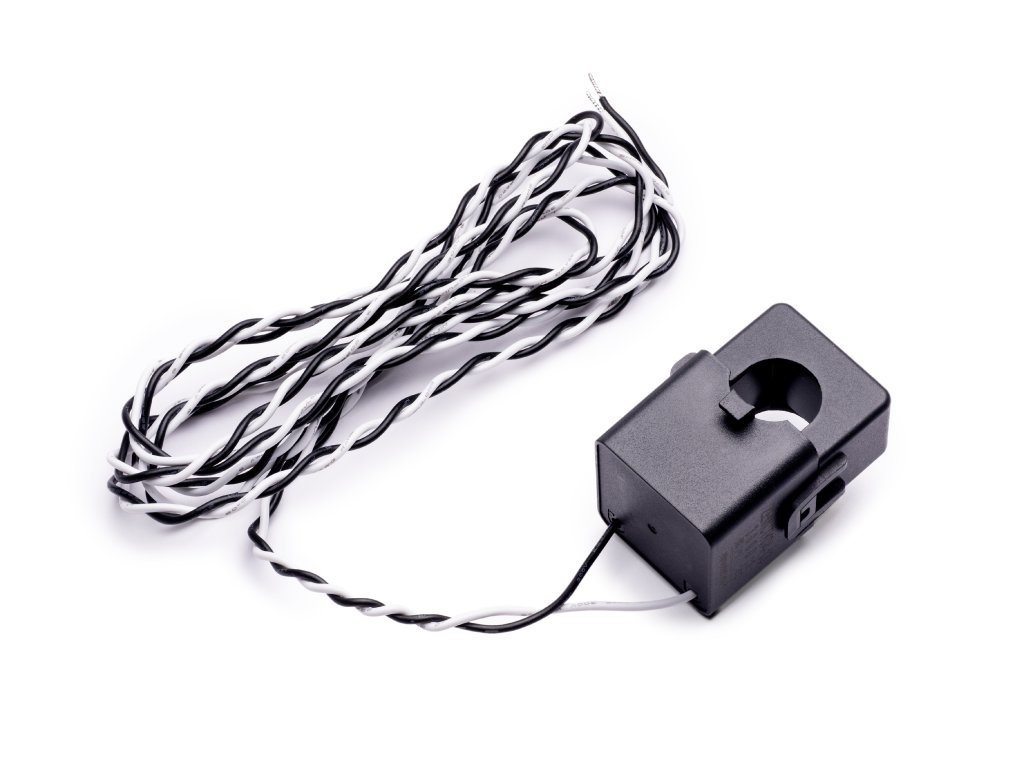

• Current clamp diameter 16mm (package includes 3 pieces), suitable for conductors up to approx. 50mm2

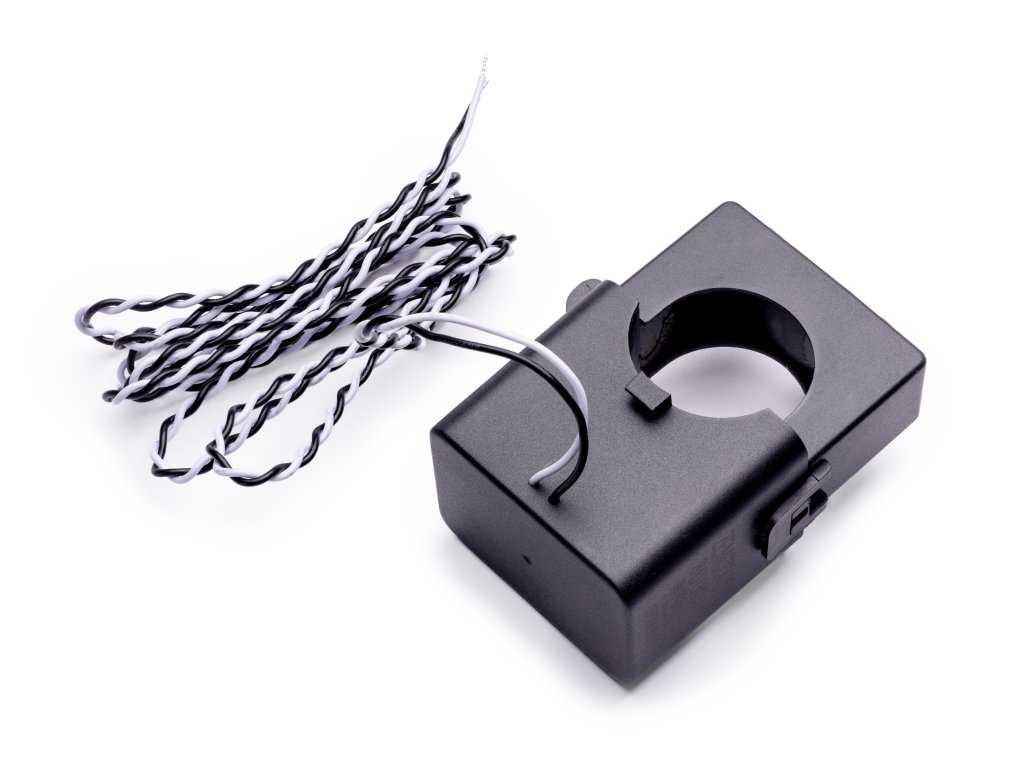

• optionally, probes up to 35mm diameter can also be equipped (can be found in the e-shop)
• WiFi (ESP32)
• application for Android / iOS (local access)
• HTTP API
• RS485 master for EVSE-DIN-RS485 charging stations

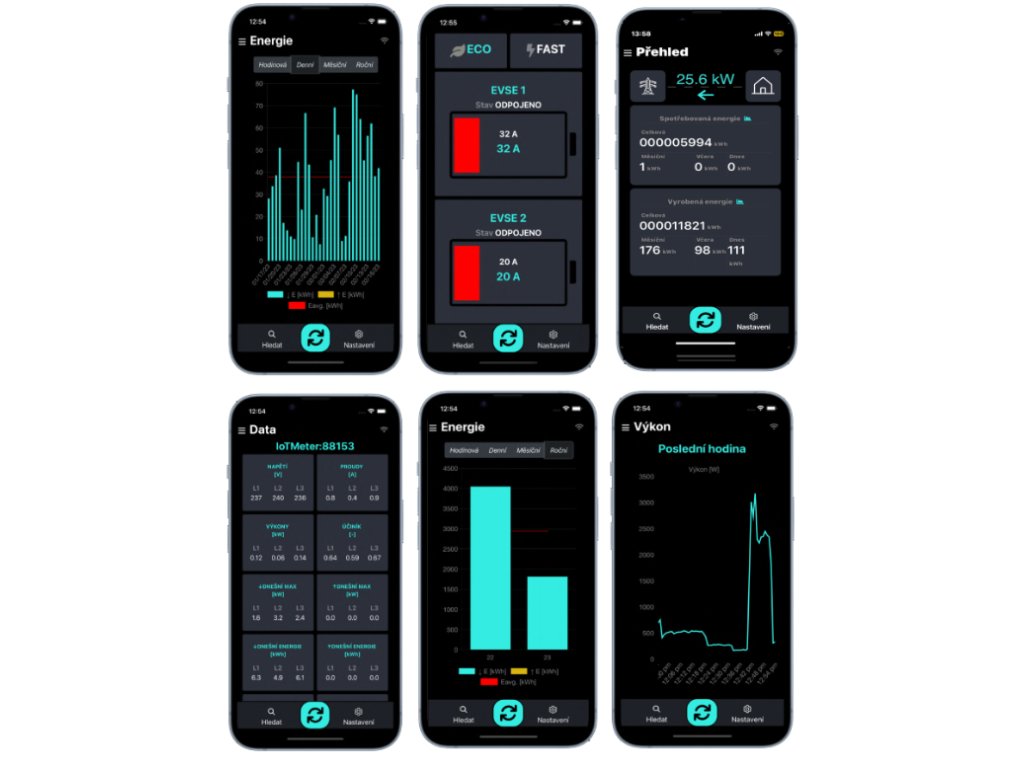

IoTmeter Application (Android / iOS)

• management of IoTmeter and Smartmodule devices
• https://play.google.com/store/apps/details?id=com.evracing.IoTmEtter
• https://apps.apple.com/cz/app/iotmeter/id1560319286?l=cs
