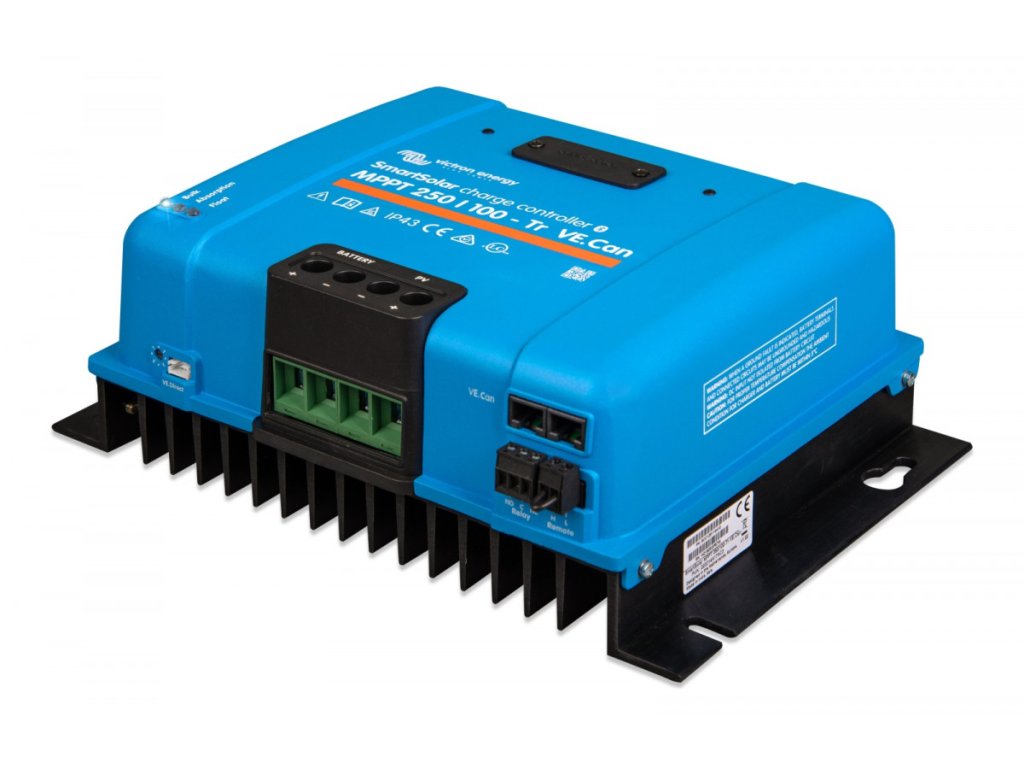

MPPT solar controller Victron Energy SmartSolar 250/100-Tr VE.Can
Robust and fast MPPT controller with VE.Can for demanding conditions with panel voltage up to 250 V, charging current 100 A. Battery 12/24/48V, PV max 1450/2900/5800Wp, display connector, built-in Bluetooth smart.
| Category: | Products |
|---|
- natural passive cooling
- automatic battery voltage recognition
- overheat protection and power reduction at high temperature
- flexible charging algorithm
- internal temperature sensor compensates absorption and float charge voltage for temperature
- optional external battery voltage and temperature sensing via Bluetooth
- Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to read battery voltage and temperature of one or more SmartSolar Chargers
- battery life: intelligent battery management
- recovery function for fully discharged battery
- will start charging even if the battery is fully discharged
- re-connects to a fully discharged Li-ion battery with integrated disconnect function
- battery voltage (auto select): 12/24/48 V
- charge current: 100 A
- PV max: 12 V: 1450 W / 24 V: 2900 W / 48 V: 5800 W
- maximum PV open circuit voltage: 250 V
- peak efficiency: 99 %
- operating temperature: -30 to +60 °C
- terminals: 35 mm² / AWG2 (Tr model)
- protection category: IP43 (electronic components), IP22 (connectors)
